P/N: SF1611-60021-1S

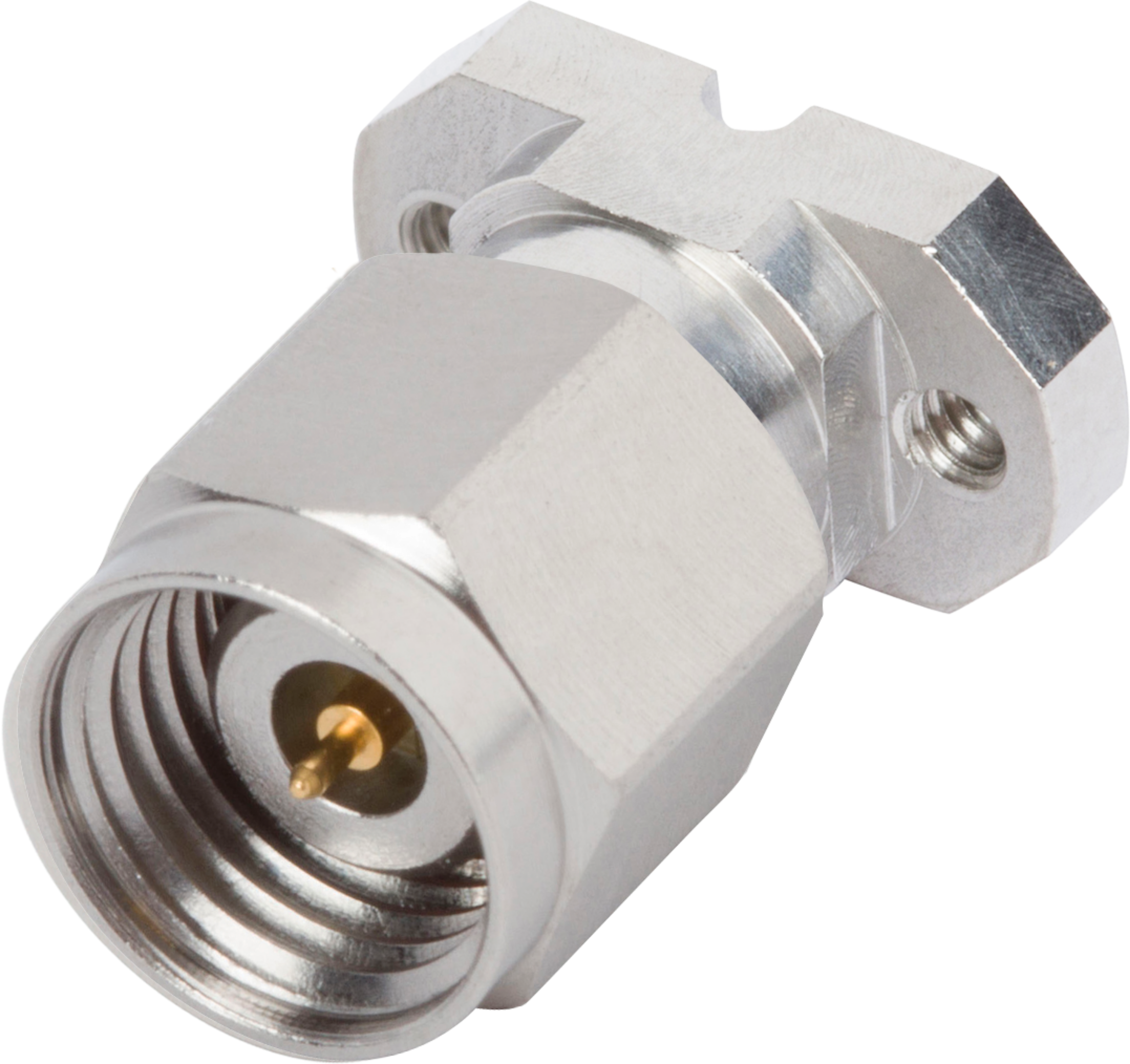

2.4mm Male Solderless PCB Compression Mount Connector, 2 Hole, with 4.76mm Screws (CPW / Microstrip)

In stock at Qty Order
TTI Inc Global Headquarters 100
Farnell 98
Mouser Electronics 94
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.4 mm
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Body Style 2 Hole
Frequency 50 GHz
Impedance 50 ohms
Number of Ports Single
Finish Passivated
Electrical
Shielding Effectiveness ≥ -100 dB
Frequency GHz 50 GHz
Impedance (Ω) 50
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
