P/N: SF9321-60086

SMPM VITA 67.3 14 Port Backplane Module

In stock at Qty Order
TTI Inc Global Headquarters 333
Mouser Electronics 123
Heilind Electronics 15
Master Electronics 10
Digi-Key Electronics 5
Microwave Components LLC 4
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Multiple
Frequency 40 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Withdrawal Force 1.5 lbs
Insertion Force 2.5 lbs (per contact)
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Multiple
Frequency 40 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Withdrawal Force 1.5 lbs
Insertion Force 2.5 lbs (per contact)
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF9321-60059

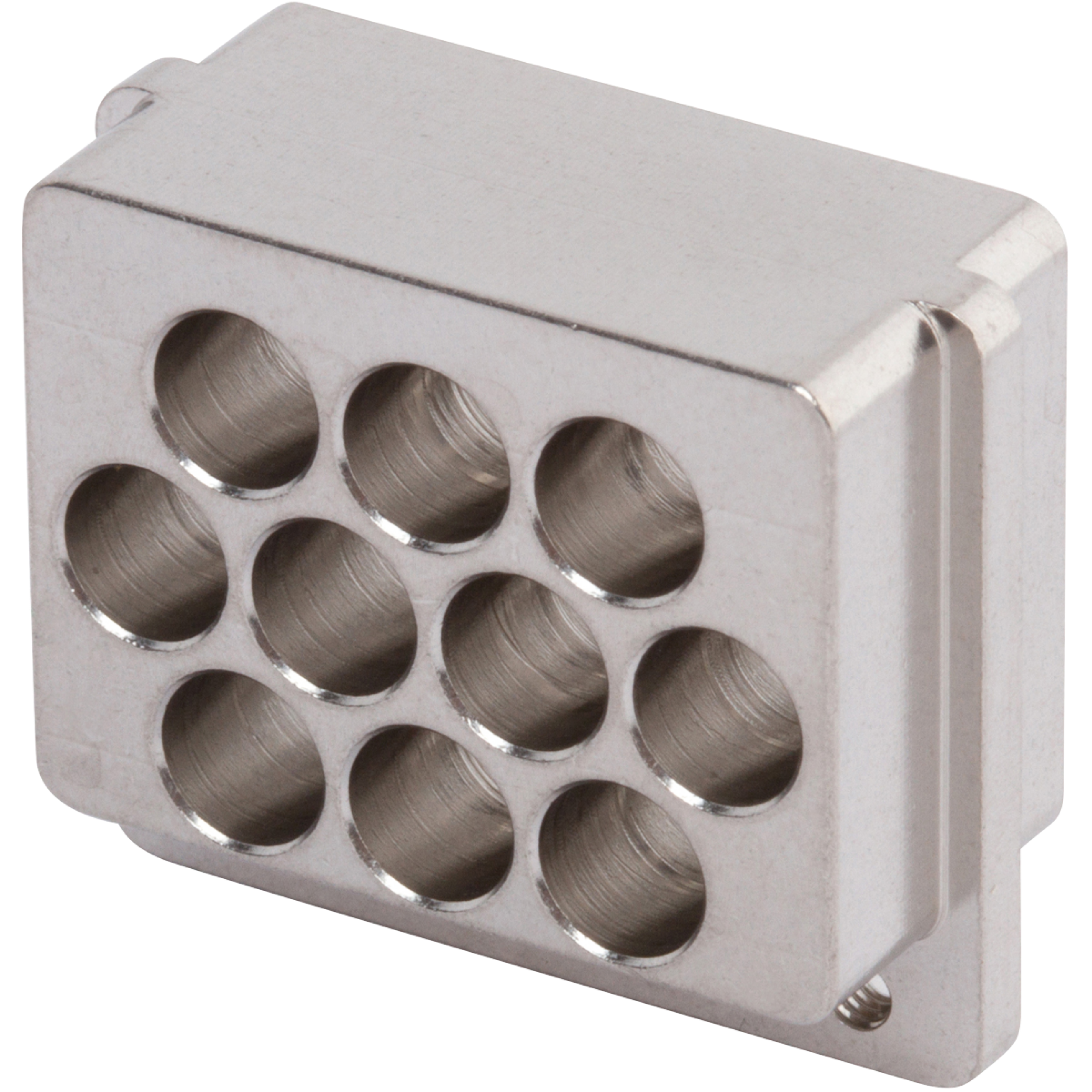

SMPM VITA 67.3 10 Port Backplane Module C

Available Inventory: 246
SF9321-60059
VITA Connectors SF9321-60059
Datasheet
Part #   500-32-015

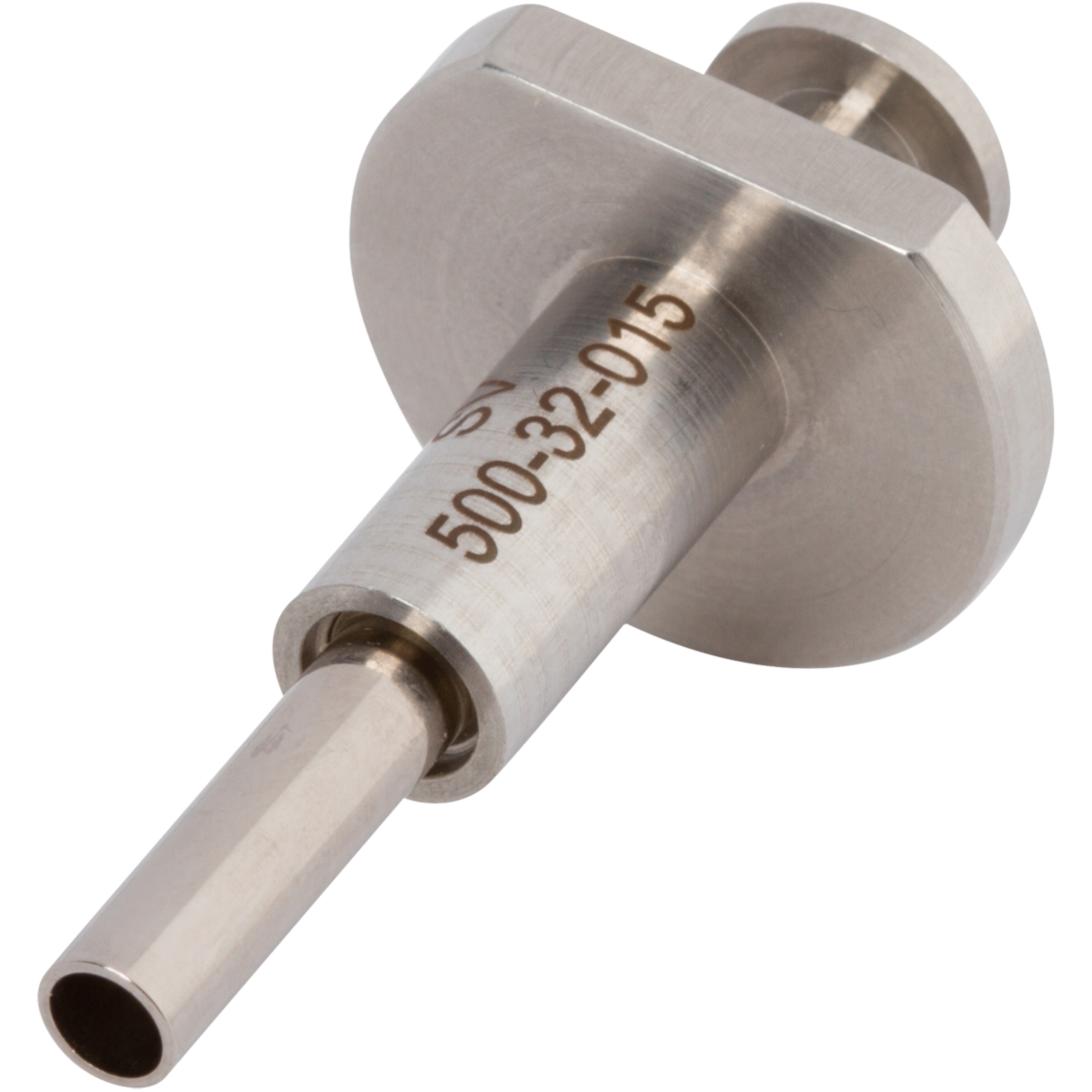

SMPM Female VITA 67.3 Contact Removal Tool

Available Inventory: 29
500-32-015
VITA Tool 500-32-015
Datasheet
Part #   9311-60221

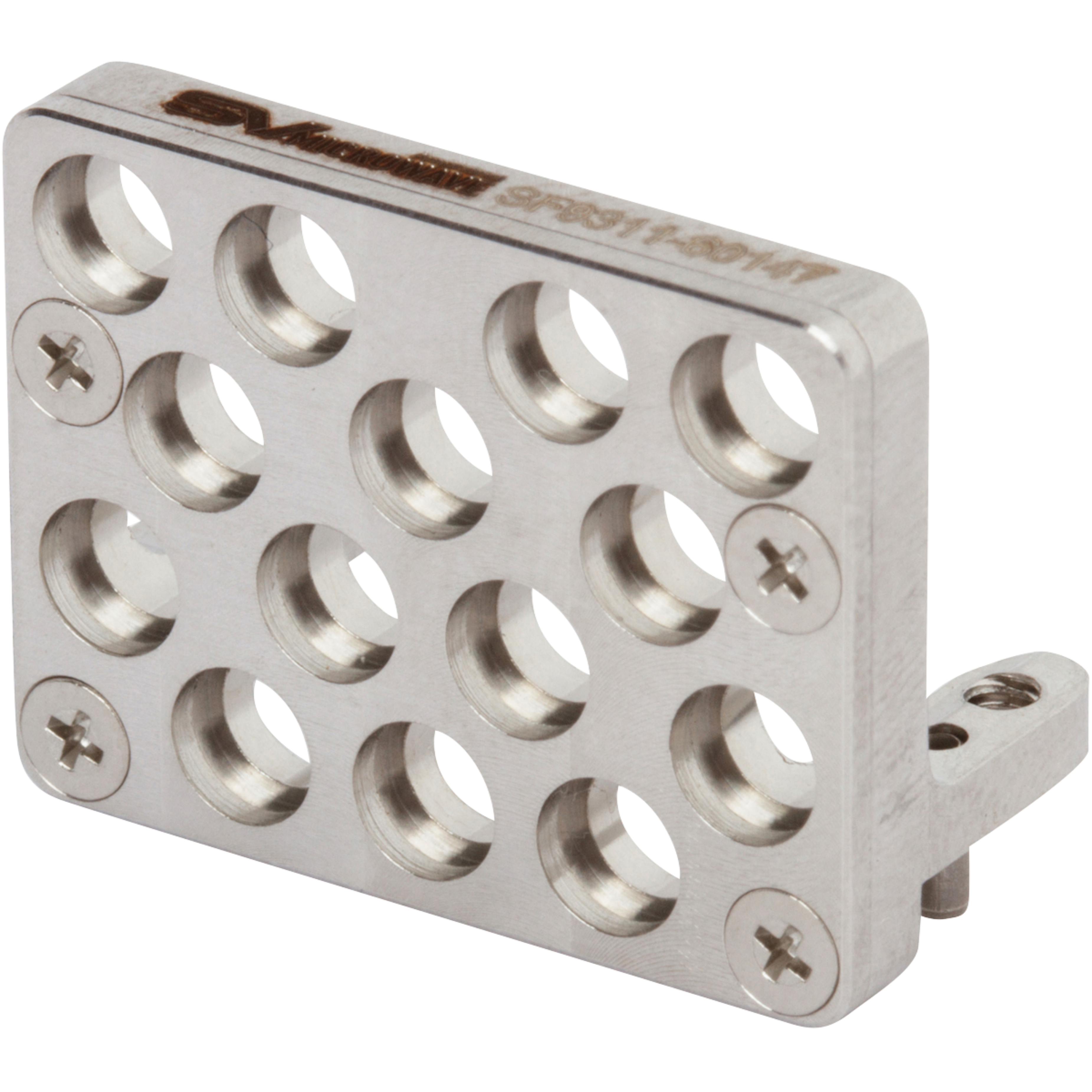

SMPM VITA 67.3 14 Port Plug-In Module C
