SMPM VITA 67.3 10 Port Backplane Module C
P/N: SF9321-60059

Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Coupling Push-on
Orientation (Body) Straight
Mounting Type Snap-in
Number of Ports Multiple
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Compliant

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.

EU REACH Regulation (EC) No. 1907/2006 Does not contain REACH SVHC

These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm).

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/2/2022 1:08:40 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Access all of our VITA resources for this part number in one, easily-downloadable package.
VITA Toolkit Download Now
  • Drawings
  • Models
  • Rapid Response App Note
  • VITA 67.3 Catalog
  • VITA 67.3 SMPM Toolbox Resource Guide
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Coupling Push-on
Orientation (Body) Straight
Mounting Type Snap-in
Number of Ports Multiple
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF9821-6001

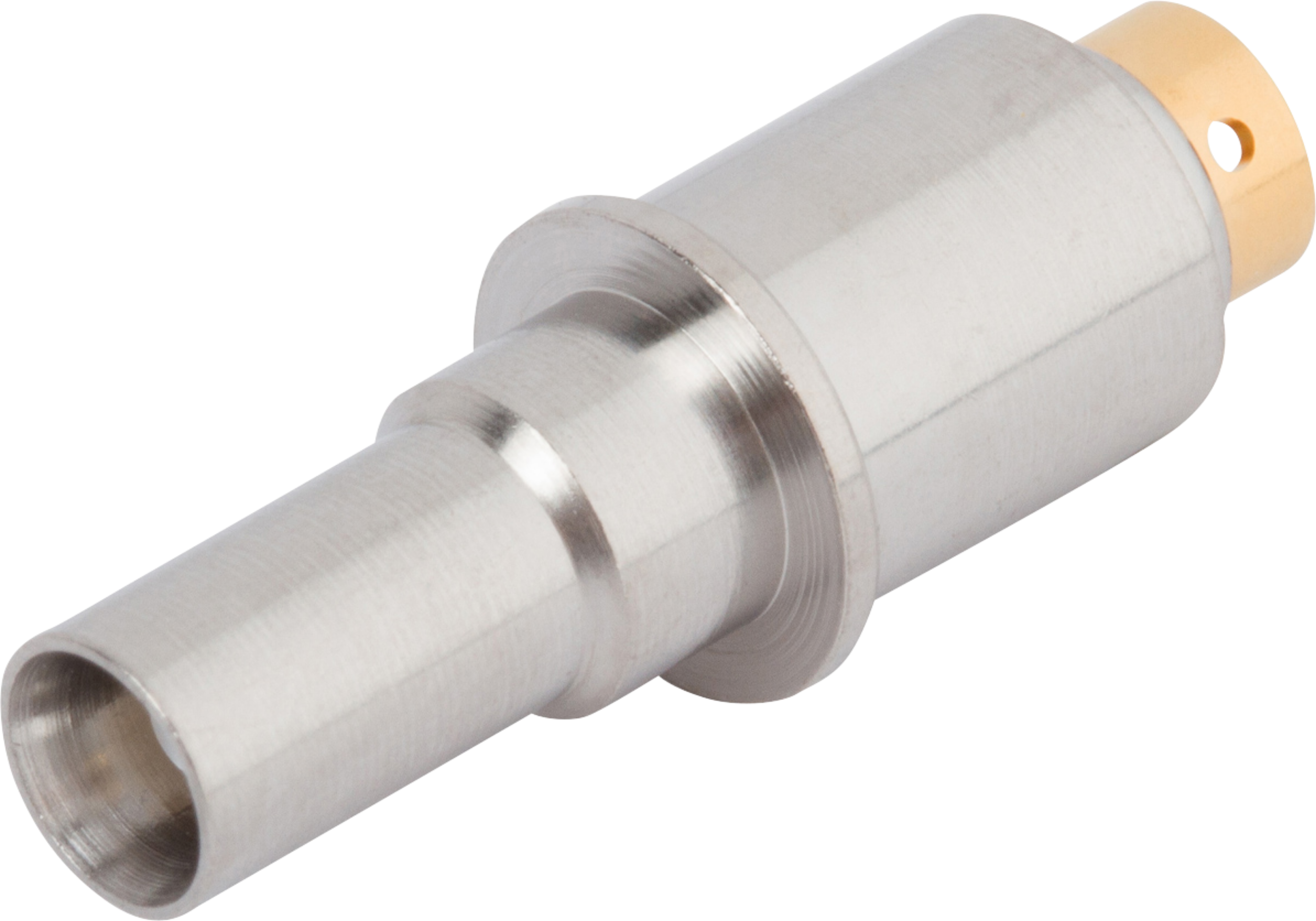

BMZ Pin D38999 Contact (Size 8) for .140 Cable

Available Inventory: 0
SF9821-6001
BMZ Connectors SF9821-6001
Datasheet
Part #   9311-60220

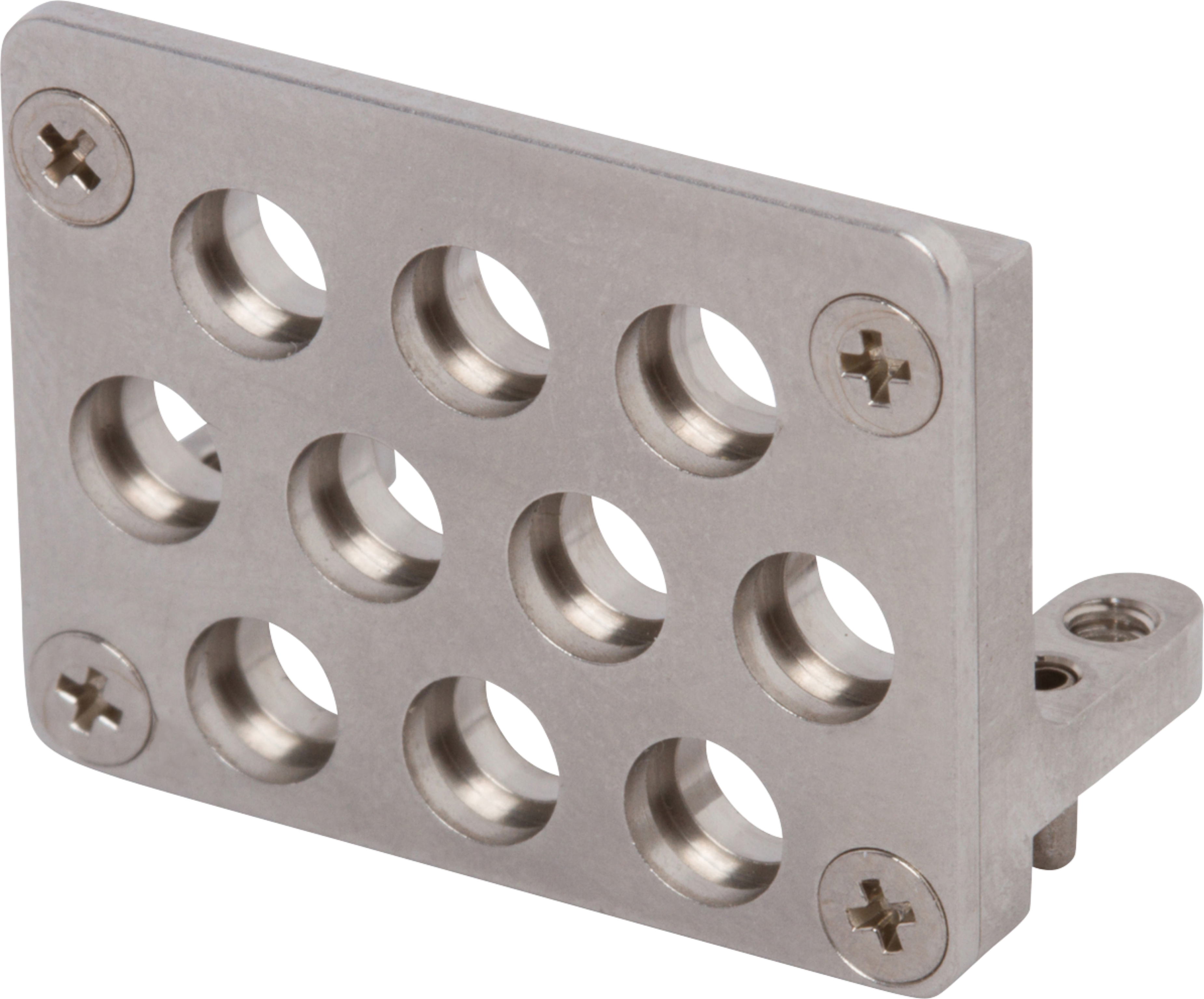

SMPM VITA 67.3 10 Port Plug-In Module C

Available Inventory: 246
9311-60220
VITA Connectors 9311-60220
Datasheet
Part #   SF9321-60086

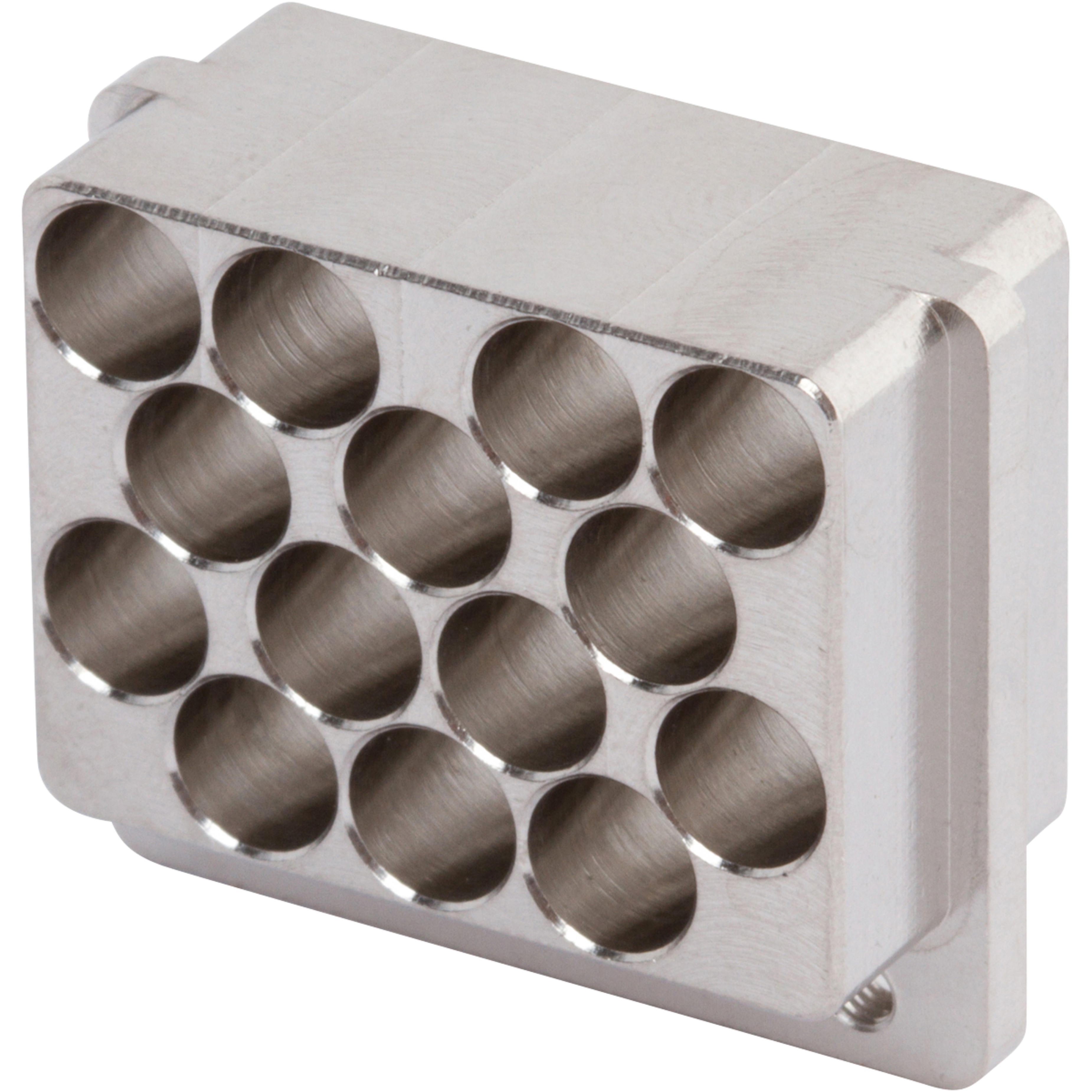

SMPM VITA 67.3 14 Port Backplane Module
