Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67, SOSA Aligned |
| RF Series | VITA SMPM |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Termination Style | Solder |
| Gender 2 | Jack (Female) |
| RF Series 2 | VITA SMPM |
| Gender | Jack (Female) |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.047 Flexible Coax |
| Cable Length | 6" |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Withdrawal Force | 1.5 lbs |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact [email protected] for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:32:48 AM |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67, SOSA Aligned |
| RF Series | VITA SMPM |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Termination Style | Solder |
| Gender 2 | Jack (Female) |
| RF Series 2 | VITA SMPM |
| Gender | Jack (Female) |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.047 Flexible Coax |
| Cable Length | 6" |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Withdrawal Force | 1.5 lbs |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Related products
3221-40066
VITA Connectors 3221-40066
500-32-015
VITA Tool 500-32-015
500-32-007
SMPM Tool 500-32-007
SF9321-60059
VITA Connectors SF9321-60059
SF9321-60086
VITA Connectors SF9321-60086
Customers Also Viewed
Part # 7032-7434-180

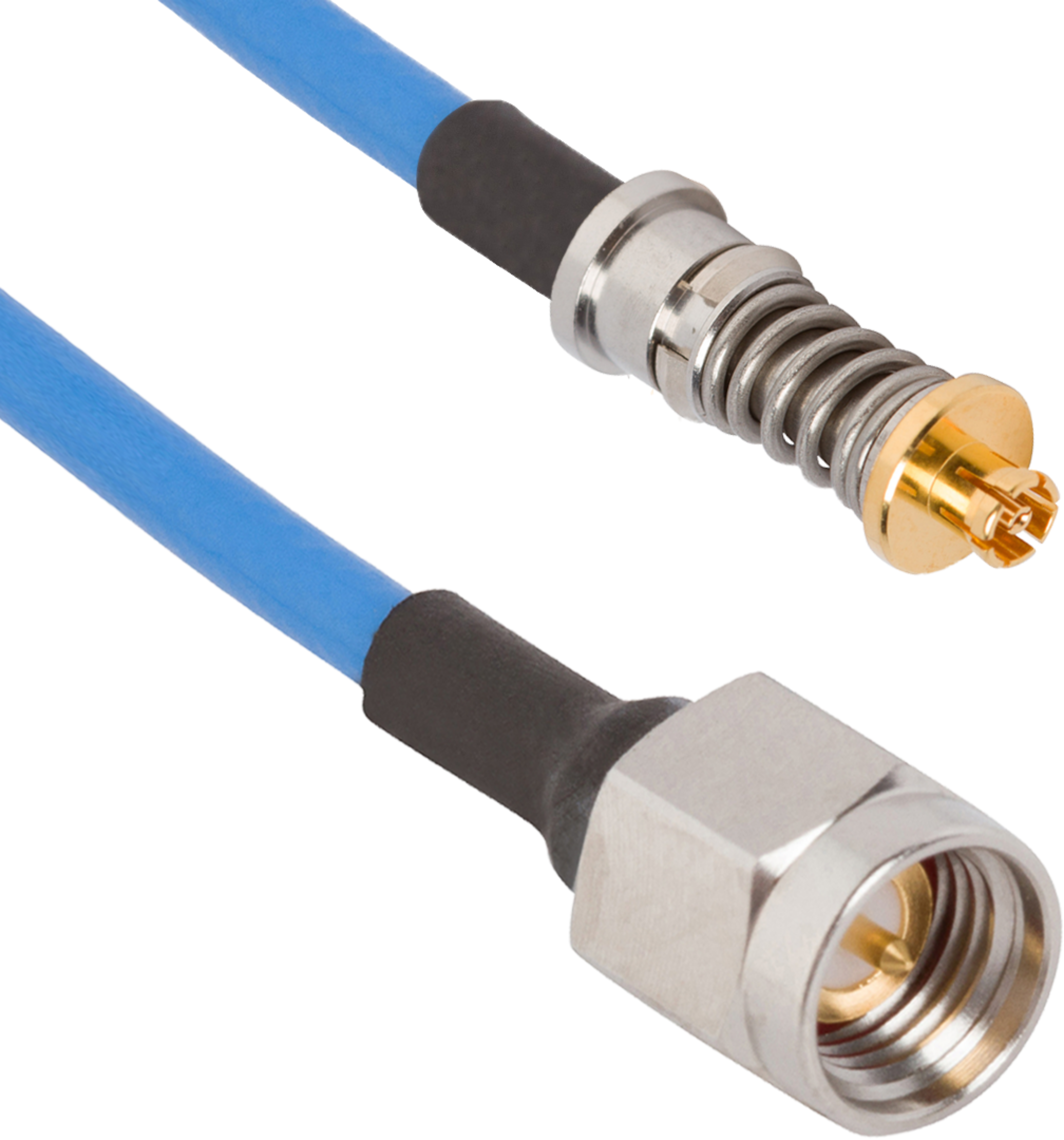

SMPM Female VITA 67.3 to SMA Male 18" Cable Assembly for .085 Cable
Available Inventory: 117
7032-7434-180
VITA Cable Assemblies 7032-7434-180
Part # 7032-7435-120

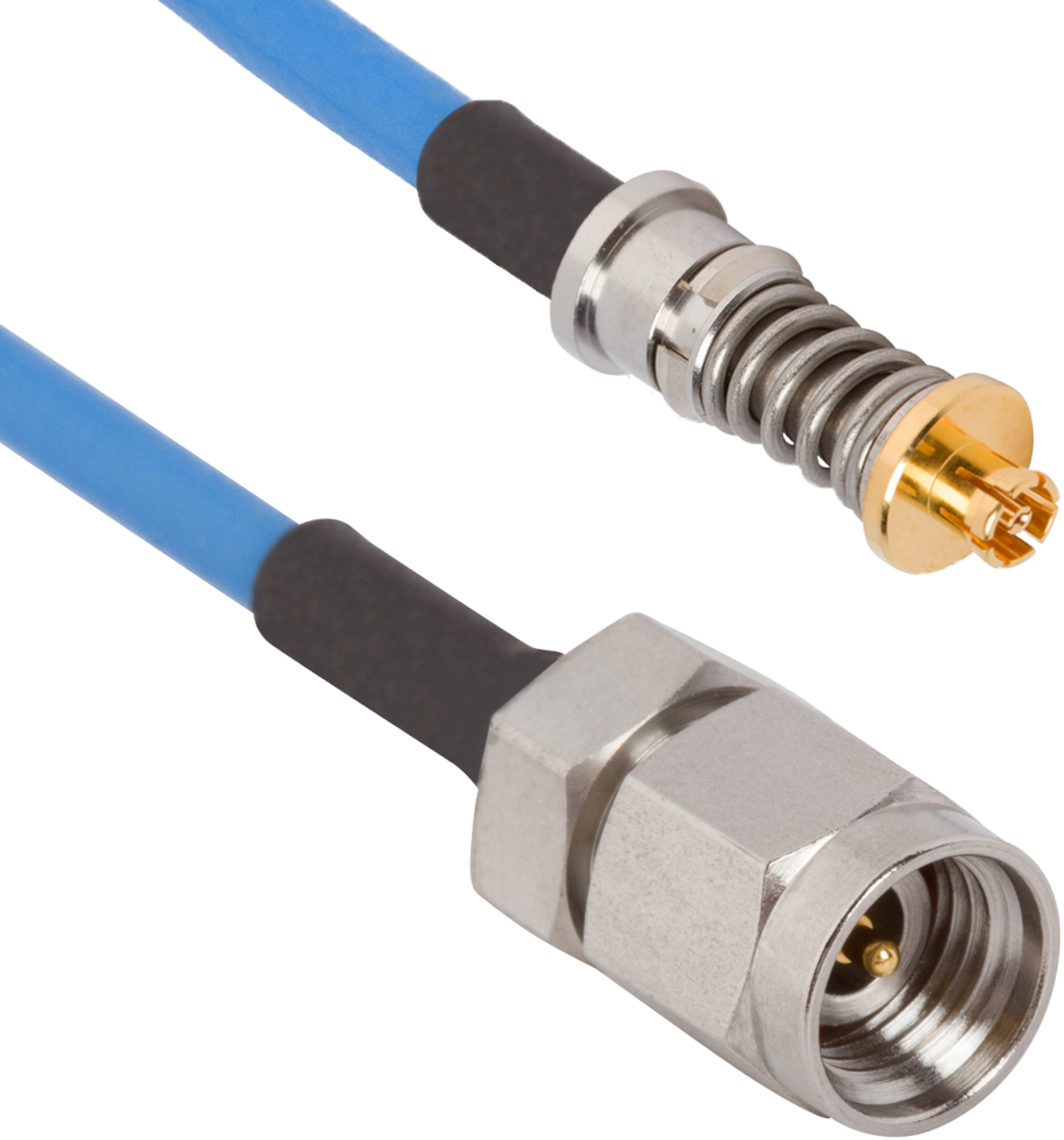

SMPM Female VITA 67.3 to 2.92mm Male 12" Cable Assembly for .085 Cable
