LiteTouch Solderless PCB Connectors

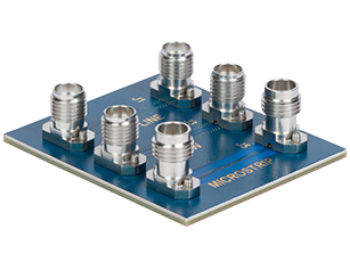

Picture for category LiteTouch Solderless PCB Connectors

SV now offers a complete line of high frequency coaxial / surface mount PCB connectors that meet the industry need for high performing, highly reliable solderless connectors for precision thin substrate mounting. As frequencies increase and board substrates become thinner, the standard solderless PCB compression mount connectors can create undesirable results on thin (< .010”) dielectric PCB. SV's LiteTouch PCB connector addresses this issue by maintaining a solderless connection while keeping the board material intact. Current configurations include 2.92 mm, 2.4 mm, and SMA versions.

Features / Benefits:

  • Solderless PCB compression mount for fast and easy installation (available with screws)
  • Non-destructive engagement on soft or thin (<.010”) dielectric cores
  • Series: SMA, 2.92mm, 2.4mm and 1.85mm
  • Custom optimized PCB footprint design through simulation available
  • COTS versions available through distribution

Applications:

  • Internet of Things (IoT)
  • 5G Wireless Infrastructure
  • Smart Cities and agriculture
  • Embedded computing
  • Precision thin substrate mounting
  • Ideal for high speed PCB materials
  • RF test and measurement
  • Stripline, microstrip and coplanar waveguide PCB launch

Application Note

LiteTouch Solderless PCB Connectors Application Note

Product Video

1.85 mm

 Impedance (Ω)  50
 Frequency GHz  65 GHz
 Shielding Effectiveness  ≥ -100 dB
 Dielectric withstanding Voltage  500 VRMS
 Mating Cycles  500
 Mating Torque  5 - 7 in - lbs
 Inter-mate ability  2.4mm
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



2.4 mm

 Impedance (Ω)  50
 Frequency GHz  50 GHz
 Shielding Effectiveness  ≥ -100 dB
 Dielectric withstanding Voltage  500 VRMS
 Mating Cycles  500
 Mating Torque  5 - 7 in - lbs
 Inter-mate ability  1.85mm
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



2.92 mm

 Impedance (Ω)  50
 Frequency GHz  40 GHz
 Shielding Effectiveness  ≥ -100 dB
 Dielectric withstanding Voltage  750 VRMS
 Mating Cycles  500
 Mating Torque  7 - 10 in - lbs
 Inter-mate ability  SMA
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



SMA

 Impedance (Ω)  50
 Frequency GHz  18 GHz
 Shielding Effectiveness  ≥ -90 dB
 Dielectric withstanding Voltage  1000 VRMS
 Mating Cycles  500
 Mating Torque  7 - 10 in - lbs
 Inter-mate ability  2.92mm
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.
Filters
SF3321-60032
1.85mm Connectors SF3321-60032
Datasheet
Part #   SF3321-60033

1.85mm Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)

Available Inventory: 0
SF3321-60033
1.85mm Connectors SF3321-60033
Datasheet
SF3321-60032-1S
1.85mm Connectors SF3321-60032-1S
Datasheet
SF3321-60033-1S
1.85mm Connectors SF3321-60033-1S
Datasheet
SF1621-60048
2.4mm Connectors SF1621-60048
Datasheet
Part #   SF1621-60049

2.4mm Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)

Available Inventory: 0
SF1621-60049
2.4mm Connectors SF1621-60049
Datasheet
SF1621-60048-1S
2.4mm Connectors SF1621-60048-1S
Datasheet
SF1621-60049-1S
2.4mm Connectors SF1621-60049-1S
Datasheet
Part #   SF1521-60115

2.92mm Female Solderless LiteTouch PCB Connector, 2 Hole (CPW / Microstrip)

Available Inventory: 758
SF1521-60115
2.92mm Connectors SF1521-60115
Datasheet
Part #   SF1521-60124

2.92mm Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)

Available Inventory: 57
SF1521-60124
2.92mm Connectors SF1521-60124
Datasheet
SF1521-60115-1S
2.92mm Connectors SF1521-60115-1S
Datasheet
SF1521-60124-1S
2.92mm Connectors SF1521-60124-1S
Datasheet
Part #   SF2921-61506

SMA Female Solderless LiteTouch PCB Connector, 2 Hole (CPW / Microstrip)

Available Inventory: 794
SF2921-61506
SMA Connectors SF2921-61506
Datasheet
Part #   SF2921-61507

SMA Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)

Available Inventory: 727
SF2921-61507
SMA Connectors SF2921-61507
Datasheet
SF2921-61506-1S
SMA Connectors SF2921-61506-1S
Datasheet
SF2921-61507-1S
SMA Connectors SF2921-61507-1S
Datasheet
