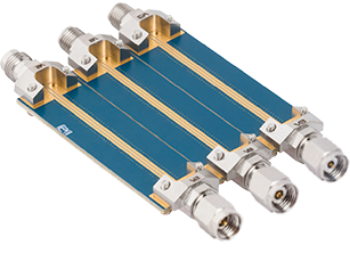

Solderless PCB Connectors

SV Microwave’s high speed RF/coaxial solderless edge launch and compression mount connectors are ideal for high frequency PCB applications where precision is key. These rugged, durable and reuseable connectors accommodate multiple PCB thicknesses and do not cause damage to the printed circuit board. Current interface configurations include our high frequency SMA, 2.92mm, 2.4mm and 1.85mm series.

Features / Benefits & Applications
Technical Specs
Additional Resources

Features / Benefits:

Solderless compression mount for fast and easy installation (includes screws)
SMA, 2.92mm, 2.4mm, and 1.85mm series available
Cost effective solutions for testing
Reusable, durable and rugged design
Customized PCB footprint design through simulation optimization
Minimal reflections through impedance matched PCB Launch

Applications:

RF Test and Measurement Boards
Rapid Prototyping
High Speed Digital Component Test
5G Wireless Test Applications

The specifications below are typical for the connector series but may not apply to this part. Please see the datasheet for full specifications.

1.85 mm

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -100 dB
Dielectric withstanding Voltage	500 VRMS
Mating Cycles	500
Mating Torque	5 - 7 in - lbs
Inter-mate ability	2.4mm
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

2.4 mm

Impedance (Ω)	50
Frequency GHz	50 GHz
Shielding Effectiveness	≥ -100 dB
Dielectric withstanding Voltage	500 VRMS
Mating Cycles	500
Mating Torque	5 - 7 in - lbs
Inter-mate ability	1.85mm
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

2.92 mm

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -100 dB
Dielectric withstanding Voltage	750 VRMS
Mating Cycles	500
Mating Torque	7 - 10 in - lbs
Inter-mate ability	SMA
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMA

Impedance (Ω)	50
Frequency GHz	18 GHz (select models to 26.5 GHz)
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1000 VRMS
Mating Cycles	500
Mating Torque	7 - 10 in - lbs
Inter-mate ability	2.92mm
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
