High Frequency Coaxial D38999 Contacts

Picture for category High Frequency Coaxial D38999 Contacts

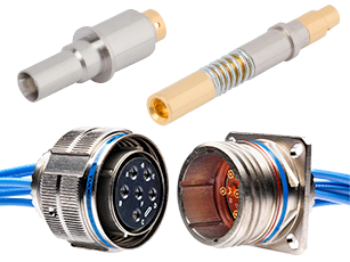

SV Microwave offers DC to 40 GHz high frequency size 8, 12 and 16 coaxial contacts for the D38999 Series III housing and standard inserts. These contacts allow any application to continue to use the D38999 connector and be able to expand the use to include the microwave transmission lines.

Features / Benefits:

  • Superior electrical performance and high frequency capability
  • Blindmate advantage and maintenance of an accurate phase length when mated
  • Uses standard interfaces based on MIL-STD-348, and can be installed in any MIL-DTL-38999 size 8, 12 or 16 insert
  • Unique “Float Mount” technology allows for consistent microwave performance while maintaining tight mechanical tolerances

Applications:

  • Military and Aerospace
  • Severe/Harsh Environments

BMA

 Impedance (Ω)  50
 Frequency GHz  18 GHz
 Shielding Effectiveness  ≥ -90 dB
 Dielectric withstanding Voltage  1000 VRMS
 Mating Cycles  5000
 Insertion Force  3.0 lbs
 Withdrawal Force  1.5 lbs
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



BMZ

 Impedance (Ω)  50
 Frequency GHz  18 GHz
 Shielding Effectiveness  ≥ -80 dB
 Dielectric withstanding Voltage  1000 VRMS
 Mating Cycles  500
 Insertion Force  0.75 lbs
 Withdrawal Force  0.13 lbs
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



NSME

 Impedance (Ω)  50
 Frequency GHz  40 GHz
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



SMPM

 Impedance (Ω)  50
 Frequency GHz  65 GHz
 Shielding Effectiveness  ≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
 Dielectric withstanding Voltage  325 VRMS
 Mating Cycles - SB   500
 Mating Cycles - FD   100
 Insertion Force - SB  2.5 lbs
 Insertion Force - FD   4.5 lbs
 Withdrawal Force - SB  1.5 lbs
 Withdrawal Force - FD   6.5 lbs
 Axial Misalignment  .010” Max
 Radial Misalignment  3° Max
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPS

 Impedance (Ω)  50
 Frequency GHz  65 GHz
 Shielding Effectiveness  ≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
 Dielectric withstanding Voltage  250 VRMS
 Mating Cycles - SB   500
 Mating Cycles - FD   100
 Insertion Force - SB  1.2 lbs
 Insertion Force - FD   2.5 lbs
 Withdrawal Force - SB  1.0 lbs
 Withdrawal Force - FD   4.5 lbs
 Axial Misalignment  .010” Max
 Radial Misalignment  3° Max
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.

Application Note

D38999 RF Coaxial Contacts

Filters
Part #   SF9421-6000

BMA Pin D38999 Contact (Size 8) for .085 Cable

Available Inventory: 1026
SF9421-6000
BMA Connectors SF9421-6000
Datasheet
Part #   SF9421-6001

BMA Pin D38999 Contact (Size 8) for .141 Cable

Available Inventory: 560
SF9421-6001
BMA Connectors SF9421-6001
Datasheet
Part #   SF9411-6000

BMA Socket D38999 Contact (Size 8) for .085 Cable

Available Inventory: 344
SF9411-6000
BMA Connectors SF9411-6000
Datasheet
Part #   SF9411-6001

BMA Socket D38999 Contact (Size 8) for .141 Cable

Available Inventory: 362
SF9411-6001
BMA Connectors SF9411-6001
Datasheet
Part #   SF9821-6000

BMZ Pin D38999 Contact (Size 8) for .085 Cable

Available Inventory: 42
SF9821-6000
BMZ Connectors SF9821-6000
Datasheet
Part #   SF9921-6000

BMZ Pin D38999 Contact (Size 8) for .085 Cable

Available Inventory: 0
SF9921-6000
BMZ Connectors SF9921-6000
Datasheet
Part #   SF9821-6001

BMZ Pin D38999 Contact (Size 8) for .140 Cable

Available Inventory: 0
SF9821-6001
BMZ Connectors SF9821-6001
Datasheet
Part #   SF9821-60003

BMZ Pin D38999 Contact (Size 8) for LMR-240-75 Cable

Available Inventory: 68
SF9821-60003
BMZ Connectors SF9821-60003
Datasheet
Part #   SF9321-60007

BMZ Pin D38999 Contact (Size 8) for RG-174 Cable

Available Inventory: 0
SF9321-60007
BMZ Connectors SF9321-60007
Datasheet
Part #   SF9821-6002

BMZ Pin D38999 Contact (Size 8) for RG-58 Cable

Available Inventory: 54
SF9821-6002
BMZ Connectors SF9821-6002
Datasheet
Part #   SF9911-6000

BMZ Socket D38999 Contact (Size 8) for .085 Cable

Available Inventory: 0
SF9911-6000
BMZ Connectors SF9911-6000
Datasheet
Part #   SF9811-6000

BMZ Socket D38999 Contact (Size 8) for .085 Cable

Available Inventory: 52
SF9811-6000
BMZ Connectors SF9811-6000
Datasheet
Part #   SF9811-6001

BMZ Socket D38999 Contact (Size 8) for .140 Cable

Available Inventory: 5
SF9811-6001
BMZ Connectors SF9811-6001
Datasheet
Part #   SF9811-60003

BMZ Socket D38999 Contact (Size 8) for LMR-240-75 Cable

Available Inventory: 38
SF9811-60003
BMZ Connectors SF9811-60003
Datasheet
Part #   SF9811-60005

BMZ Socket D38999 Contact (Size 8) for RG-174 Cable

Available Inventory: 25
SF9811-60005
BMZ Connectors SF9811-60005
Datasheet
Part #   SF9811-6002

BMZ Socket D38999 Contact (Size 8) for RG-58 Cable

Available Inventory: 0
SF9811-6002
BMZ Connectors SF9811-6002
Datasheet
Part #   8001-4102

NSME Pin D38999 Contact (Size 12) for .085 Cable

Available Inventory: 15
8001-4102
NSME Connectors 8001-4102
Datasheet
Part #   8001-4107

NSME Pin D38999 Contact (Size 8) for .085 Cable

Available Inventory: 137
8001-4107
NSME Connectors 8001-4107
Datasheet
Part #   8001-4101

NSME Pin D38999 Contact (Size 8) for .141 Cable

Available Inventory: 79
8001-4101
NSME Connectors 8001-4101
Datasheet
Part #   8001-4104

NSME Socket D38999 Contact (Size 12) for .085 Cable

Available Inventory: 103
8001-4104
NSME Connectors 8001-4104
Datasheet
Part #   8001-4108

NSME Socket D38999 Contact (Size 8) for .085 Cable

Available Inventory: 0
8001-4108
NSME Connectors 8001-4108
Datasheet
Part #   8001-4103

NSME Socket D38999 Contact (Size 8) for .141 Cable

Available Inventory: 20
8001-4103
NSME Connectors 8001-4103
Datasheet
Part #   3221-4002

SMPM Pin D38999 Contact (Size 12) for .085 Cable

Available Inventory: 1507
3221-4002
SMPM Connectors 3221-4002
Datasheet
Part #   SF3211-6004

SMPM Socket D38999 Contact (Size 12) for .085 Cable

Available Inventory: 1548
SF3211-6004
SMPM Connectors SF3211-6004
Datasheet
Part #   9921-40001

SMPS Pin D38999 Contact (Size 16) for .047 Cable

Available Inventory: 251
9921-40001
SMPS Connectors 9921-40001
Datasheet
Part #   SF9911-60001

SMPS Socket D38999 Contact (Size 16) for .047 Cable

Available Inventory: 255
SF9911-60001
SMPS Connectors SF9911-60001
Datasheet
